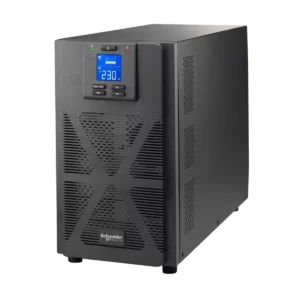

Schneider Electric Easy UPS 1 Ph On-Line, 3kVA, Tower, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD (SRVS3KI)

Description

Schneider Electric Easy UPS 1 Ph On-Line, 3kVA, Tower, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD (SRVS3KI)

Overview-Presentation:
For small to medium businesses, Easy UPS 1 Ph On-Line provides essential power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.

Lead time: Usually in Stock

Main-Run time for load: Min-max: 240-2400 W / 4min 24s

Max. Capacity Used : 100%

Main Input Voltage: 230 V

Other Input Voltage:220 V -240 V

Main Output Voltage: 230 V

Other Output Voltage:220 V -240 V

Rated power in W: 2400 W

Rated power in VA: 3000 VA

Input Connection Type: IEC 60320 C20

output connection type:6 IEC 60320 C13 – 1 IEC 60320 C19

Cable length: 1.5 m

number of cables: 1

provided equipment:
1 IEC 60320 C19 to Schuko power cable
1 IEC 60320 C13 to C14 power cable
1 USB cable
1 RS-232 configuration cable
user manual

General-
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No

Physical-
color: Black (RAL 7010)
Height: 33.6 cm
width: 19 cm
Depth: 42.5 cm
Net weight: 26.8 kg
mounting location: Front
mounting preference: No preference
mounting mode: Not rack-mountable
USB compatible: Yes
mounting position: Vertical

Input-
input voltage limits:
110…285 V half load
160…280 V full load

network frequency: 40…70 Hz auto sensing

Output-
Maximum configurable power in VA: 3000 VA
Maximum configurable power in W: 2400 W

output frequency: 50/60 Hz +/- 3 Hz sync to mains

UPS type: Double conversion online

Wave type: Sine wave

efficiency: 88 % (full load)

Additional information:
Configurable for 220 : 230 or 240 nominal output voltage
bypass type: Internal bypass (automatic and manual)
crest factor: 3:01

Conformance-product certifications: CE – UKCA

standards:
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Environmental-
Ambient air temperature for operation: 0…40 °C
relative humidity: 0…95 % non-condensing
Operating altitude: 0…3000 m
Ambient air temperature for storage: -20…50 °C
storage Relative Humidity: 0…95 % Non-condensing
Storage altitude: 0…15000 m
Acoustic level: 50 dBA
Heat dissipation: 910 Btu/h
IP degree of protection: IP20

Batteries & Runtime-Run Time: View Runtime Graphaction_new_window
Efficiency: View Efficiency Graphaction_new_window
battery type: Lead-acid battery
Battery voltage: 72 V
number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 4 h
Battery life: 3…5 year(s)
Replacement battery: APCRBCV205 action new window
battery charger power: 118 W rated

Communications & Management-alarm:
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Control panel: Multifunction LCD status and control console
Free slots: 1
Surge Protection and Filtering-
Surge energy rate: 600 J

Packing Units-
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 46.5 cm
Package 1 Width: 32.5 cm
Package 1 Length: 56.5 cm
Package 1 Weight: 29 kg

Contractual warranty: Warranty 2 years repair or replace
