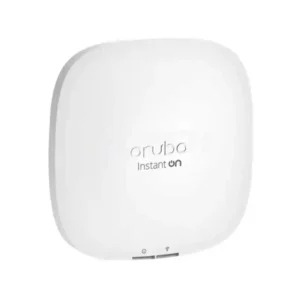

HPE Aruba Networking Instant On AP22 (EG) 2×2 Unified Dual Band AC 1750 Wi‑Fi 6 Indoor Access Point

Description

HPE Aruba Networking Instant On AP22 (EG) 2×2 Unified Dual Band AC 1750 Wi‑Fi 6 Indoor Access Point

Product Description:

Aruba Instant On AP22 Indoor Access Points delivers affordable, business-grade 802.11ax Wi-Fi for high-performance, high-density small business environments. Business-grade capabilities are designed to meet the growing number of mobile, IoT, and security needs.

Features:

Wi-Fi 6 for high performance and efficiency.
Supports up to 75 associated clients per radio.
Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per-user guest access.
Certifications EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3

Product Specifications:

Input voltage

Power over Ethernet (POE):
802.3af (class 3)
DC power (12V)

Note: Power sources are sold separately
Wi-Fi antenna integrated down-tilt omni-directional antennas for 2×2 MIMO with a peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).

Connectivity:

Standard: IEEE 802.11ax

Ports: uplink Gigabit Ethernet port, with POE-in support (802.3af)

Mounting: The access point ships with a white mount clip that can attach to both wall and ceiling. You can also purchase a mount (R6P90A) that matches the aesthetic design and looks of the APs, to blend seamlessly into your environment.

Power consumption:

Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)

Radio coverage

Dual Radio for simultaneous dual-band operation:
5 GHz 802.11ax 2×2 MIMO for up to 1.2 Gbps wireless data rate, with Multi-User MIMO support (Wi-Fi 6)
2.4 GHz 802.11ax 2×2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)

Physical:

Weight: 1.1 lb

Weight: 500 g

Minimum dimensions ( H x W x D): 1.5 x 6.3 x 6.3 in

Minimum dimensions ( H x W x D): 37x 160 x 160 mm
