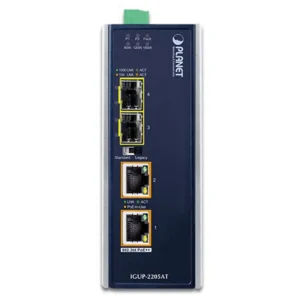

Planet IGUP-2205AT Industrial 2 Port 100/1000X SFP to 2 Port 10/100/1000T 802.3bt PoE Media Converter Blue (IGUP2205AT)

Description

Planet IGUP-2205AT Industrial 2 Port 100/1000X SFP to 2 Port 10/100/1000T 802.3bt PoE Media Converter Blue (IGUP2205AT)

Product Specifications:

Brand: Planet

Color: Blue

DIN rail mounting: Yes

Housing material: Metal

International Protection (IP) code: IP30

LED indicators: Fault/PoE/Power/System

Cable types supported: Cat3/Cat4/Cat5/Cat5e/Cat6

Converter input interface: 1000Base-T/100Base-T/10Base-T

Converter output interface: 1000Base-BX/1000Base-LX/1000Base-SX

Duplex system: Full/Half

Ethernet interface type: Gigabit Ethernet

Ethernet LAN data rates: 10/100/1000 Mbit/s

Flow control support: Yes

Maximum data transfer rate: 1000 Mbit/s

Networking standards: IEEE 802.3/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Operation Requirements:

Operating relative humidity (H-H): 5 – 90 %

Temperature (T-T): -40 – 75 °C

Storage relative humidity (H-H): 5 – 90 %

Storage temperature (T-T): -40 – 85 °Cs

Ports & interfaces:

Connectivity technology: Wired

Fiber optic connector: SFP

Fiber ports quantity: 2

Power over Ethernet (PoE) ports quantity: 2

Power & Dimensions:

Input voltage: 12 – 48 V

Power over Ethernet (PoE): Yes

Total Power over Ethernet (PoE) budget: 90 Watt

Dimensions: 8.5 x 5.5 x 13.5 cm

Weight: 0.69 Kg

Warranty: 5 years
