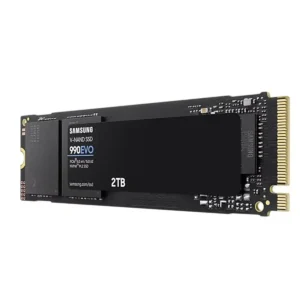

Samsung 2TB 990 EVO PCIe 4.0 NVMe M.2 Internal SSD MZ-V9E2T0BW

Description

Samsung 990 EVO PCIe 4.0 NVMe 2TB M.2 Internal SSD MZ-V9E2T0BW

Product Specifications:

Application: Client PCs

Rated Capacity: 2,000GB (1GB=1 Billion bytes by IDEMA)
*Actual usable capacity may be less (due to formatting, partitioning, operating system, applications, or otherwise)

Form Factor: M.2 (2280)

Interface: PCIe 4.0 x4 / 5.0 x2 NVMe 2.0

Dimension (WxHxD): 80 x 22 x 2.38 mm

Weight: Max 9.0g Weight

Storage Memory: Samsung V-NAND TLC

Controller: Samsung in-house Controller

Cache Memory: HMB (Host Memory Buffer)

Special Feature: TRIM Support

S.M.A.R.T Support: Supported

GC (Garbage Collection): Auto Garbage Collection Algorithm

Encryption Support: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

WWN Support: Not supported

Device Sleep Mode Support: Yes

Performance: Sequential read up to 5,000 MB/s

Sequential Write: Up to 4,200 MB/s

Random Read (4KB, QD32): Up to 700,000 IOPS

Random Write (4KB, QD32): Up to 800,000 IOPS

Random Read (4KB, QD1): Up to 20,000 IOPS

Random Write (4KB, QD1): Up to 90,000 IOPS

Environment:

Average Power Consumption (system level): Read 5.5 W / Write 4.7 W
*Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle): Typical 60 mW

Power Consumption (Device Sleep): Typical 5 mW

Allowable Voltage: 3.3 V ± 5 % Allowable voltage

Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)

Operating Temperature: 0 – 70 ℃ Operating Temperature

Shock: 1,500 G & 0.5 ms (Half sine)

Software Management SW: Magician Software for SSD management
