JBL Bar 500 Soundbar with Wireless Subwoofer

Description

JBL Bar 500 Soundbar with Wireless Subwoofer

Product Specifications:

Power supply: 100 – 240V AC, ~ 50/60Hz
Networked standby power: < 2.0 W
Operating temperature: 0°C – 45 °C
Total speaker power output (Max THD 1%): 590W
Soundbar output power (Max THD 1%): 290W
Subwoofer output power (Max. THD 1%): 300 W
Soundbar transducer: 4x (46×90)mm racetrack drivers, 3x 0.75″ (20mm) tweeters
Subwoofer transducer: 10” (260mm)
Frequency response: 35Hz – 20kHz (-6dB)
Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Product Weight and Dimensions (W x H x D):

Soundbar dimensions (W x H x D): 1017 x 56 x 103.5 mm / 40’’ x 2.2’’ x 4’’
Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm / 12″ x 17.3″ x 12″
Soundbar weight: 2.8kg/ 6.2 lbs
Subwoofer weight: 10 kg / 22 lbs
Packaging dimensions (W x H x D): 1105 x 370 x 475 mm/ 43.5″ x 14.6″ x 18.7″
Packaging Weight: 16.2 kg / 35.6 lbs

Connectivity:

USB port: Type A
USB rating: 5V DC, 0.5A
Supporting file format: MP3
MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate: 16 – 48 kHz
MP3 bitrate: 80 – 320 kpbs
Bluetooth version: 5.0
Bluetooth profile: A2DP 1.2, AVRCP 1.5
Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
Bluetooth transmitter power: <15 dBm (EIRP)
Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range: 2412 – 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi transmitter power: < 20 dBm (EIRP)
5G Wi-Fi transmitter frequency range: 5.15 – 5.35GHz, 5.470-5.725GHz, 5.725 – 5.825GHz
5G Wi-Fi transmitter power: 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
2.4G wireless transmitter frequency range: 2406 – 2474MH
2.4G wireless transmitter power:＜10dBm (EIRP）

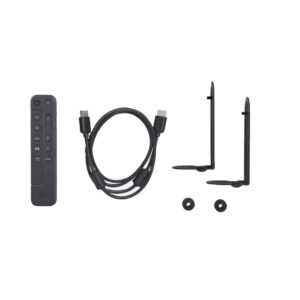

What’s in the Box?
– 1 x Main Soundbar
– 1 x Wireless subwoofer
– Remote control with 2 x batteries
– Power cords (up to 8pcs depending on region SKUs)
– 1 x HDMI cable
– 2 x L-shape wall-mount bracket with screws
– Quick start guide
– Safety Instruction and Warranty Card
– Wall mount template
