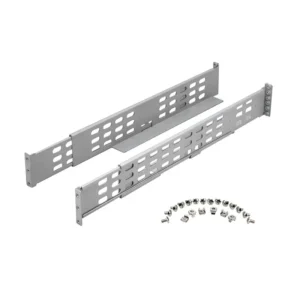

APC Easy UPS On-Line 10kVA/10kW Rackmount 4U 230V w/ Rail Kit

Description

APC Easy UPS On-Line 10kVA/10kW Rackmount 4U 230V w/ Rail Kit

Product Specifications:

Max Configurable Power (Watts): 10.0kWatts / 10.0kVA

Efficiency at Full Load: 94.0 %

Output Voltage Distortion: 1 %

Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages: 220 V, 240 V

Load Crest Factor: 3 : 1

Topology: Double conversion online

Waveform type: Sine wave

Bypass: Internal bypass (automatic and manual)

Input frequency: 40 – 70 Hz Auto-sensing

Input voltage range for main operations: 110 – 300 60 % load, 176 – 300 Full load

Efficiency at Full Load: 94.0 %

Other Input Voltages: 220 V, 240 V

Battery type: Lead-acid battery

Typical recharge time: 5 hour(s)

Nominal Battery Voltage: 192 V

Expected Battery Life (years): 3 – 5

Battery Charge Power (Watts): 235 Watts

Interface Port(s): DB-9 RS-232; Intelligent Smart Slot; USB

Control panel: Multifunction LCD status and control console

Emergency Power Off (EPO): Yes

Available SmartSlot Interface Quantity: 1

Surge energy rating: 600 Joules

Height: 17.3 cm

Width: 43.8 cm

Depth: 71.0 cm

Net Weight: 68.0 Kg

Shipping weight: 79.0 Kg

Shipping Height: 48.5 cm

Shipping Width: 83.6 cm

Shipping Depth: 60.0 cm

Color: Black

Operating Temperature: 0 – 40 °C

Operating Relative Humidity: 0 – 95 (Non-condensing) %

Operating Elevation: 0 – 3000 meters

Storage Temperature: -15 – 60 °C

Storage Relative Humidity: 0 – 95 (Non-condensing) %

Storage Elevation: 0 – 15000 meters

Audible noise at 1 meter from the surface of the unit: 58.0d BA

Online thermal dissipation: 2128.0 BTU/hr

Protection Class: IP20
